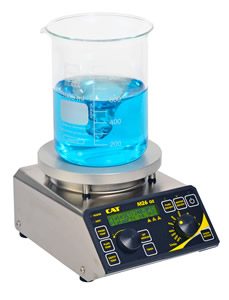

M 26G2 Hotplate Magnetic Stirrer

M26G2 Hotplate Magnetic Stirrer

Volume: 10l | 1600 rpm



Temp: 450° C

Price: $1,143.00

Call 513-942-4007 or 888-249-4074 or email your order form to usasales@rosesci.com to place your order

Volume: 10l | 1600 rpm
Temp: 450° C
Price: $1,143.00
Call 805-709-1056 to Order

Microprocessor controlled heatable magnetic stirrer with a second safety circuit.

  • backlit text display
  • anodised aluminium hotplate: round Ø 140 mm, 500 watt, RT (+5 °C) -360 °C
  • external Pt100 connection
  • contact thermometer connection
  • maintenance-free motor: 60-1600 1/min
  • safety temperature
  • second independent safety circuit
  • timer function
  • ramp function
  • RS485 interface (RS232 via adapter available)

See Also: MCS78 Programmable Hotplate Magnetic Stirrer

KM16.7 Hotplate Stirrer for Round-Bottom Flasks

Magnetic Hotplate Stirrers

[wptabs]

[wptabtitle]Specifications[/wptabtitle]
[wptabcontent]

Type M 26G2
Specifications
Motor
split-pole, 25 Watts
60 - 1600 min-1
Softstart, microprocessor controlled
Display
4 digit 7 segment-LED display
Hotplate
M 22: Anodized Aluminum
Heating Power
M 22: 500 watts
Motor Specification
• Microprocessor controlled
• Soft start logic
• Steplessly adjustable, 50 - 1600 rpm
• Split-pole, 40 watts
Temperature Control
• Microprocessor controlled - fuzzy logic
• Adjustable hotplate temperature
• Programmable hotplate temperature
• Programmable Pt100 probe temperature
• Programmable safety temperature
• Programmable temperature ramp rate 1°C/hour to 450°C/hour
Safety System
Detects and protects against the following hazardous situations:
• Hotplate failure (hotplate exceeds max. allowed temperature)
• Probe failure (disconnection or break of Pt100 probe)
• Detection of out-of-liquid condition, e.g. stirring vessel breaks
•Differential safety cut-out (external probe senses an extreme fall in temperature of liquid being stirred/heated)
• Triac failure
Switch-off Time Delay
Programmable switch-off time delay
min. delay: 1 minute
max. delay: 999 minutes
Temperature Sensor
Hotplate: Thermocouple
External: Platinum Resistance Sensor (Pt100)
Setpoint resolution hot plate
1°C / 1K (1°F in Fahrenheit Mode)
Setpoint resolution Pt100 Probe
1°C / 1K (1°F in Fahrenheit Mode)
Typical Temperature Stability With Pt100 Use
± 0.4 °C
Recommended Stirring Bar
Length: 55mm (30-70mm)
Diameter: 10mm (5-12mm)
Permissible Ambient Temperature
5 - 40 °C
Permissible Humidity
80 % RH
Safety Class Acc. To DIN 40050
IP32
Hotplate Dimensions
130 mm Ø
Weight
M 22: 2,6 kg

[/wptabcontent]
[wptabtitle]Accessories[/wptabtitle]
[wptabcontent]

Accessories

The following accessories are available for the M 22:

  • Pt100 Temperature Probe - 60278-00  $114.00
  • Stand - 60663-00  $28.00
  • Probe Clamp - 8B005624   $49.00
  • Clamp - 60668-00  $43.00

[/wptabcontent]

[wptabtitle]Articles[/wptabtitle]
[wptabcontent]
Useful Articles:


[/wptabcontent]

[wptabtitle]Manuals/Files[/wptabtitle]
[wptabcontent]

Downloads

M 26G2 Instruction Manual
